Product features and advantages
1.It can quickly switch between different drill bits to meet the drilling requirements of various hole diameters. There is no need to frequently replace equipment, which improves the flexibility of the production line. It is suitable for batch/scattered production scenarios of multi-specification glass drilling.

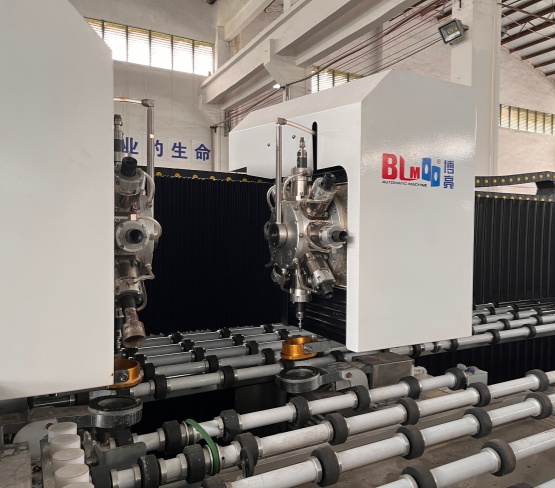

2.The rotating tool magazine can quickly position the required drill bit, reducing tool change time. With the automatic control of the CNC system, it can continuously complete drilling operations with different hole diameters, greatly improving processing efficiency.
3.The rotating positioning accuracy of the tool magazine is high, ensuring the positional accuracy when switching drill bits, thereby ensuring the drilling accuracy of each hole diameter and meeting the strict requirements of glass deep processing for hole position and hole diameter accuracy.
4.This equipment can be used as a standalone machine or connected with edging machines, cleaning machines, etc. to form an automated production line.
5.The operation interface of this equipment is an industrial computer, which can be used for online drawing. It is matched with a barcode scanner to read information online via barcode, automatically distribute and drill holes. It can be connected to the factory ERP system for online drawing and drawing import.
6.A milling cutter function can be optionally configured to realize the combination of drilling, milling and polishing.
Product Parameters
|
Processing range
|
X1:0-6000mm; Y1/Y2:0-2500mm
|
|
Drilling diameter
|
Φ6-Φ50mm
|
|
Glass thickness
|
4-19mm
|
|
The speed of screw propulsion
|
0-3mm/s
|
|
Overall size
|
13700*5600*1800mm
|
|
The height of the table
|
900+/-20mm
|
|
The max glass size
|
6000mm*2500mm
|
|
The min glass size
|
1200mm*300mm
|
