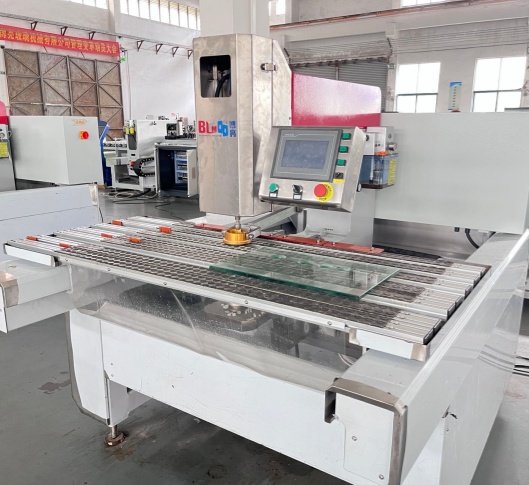

Home Appliances Electronic Glass Drilling Machine A15 adopts a single-spindle structure and is equipped with a numerical control operating system (a console with a touch screen and operation buttons), enabling automated and high-precision glass drilling operations to ensure the accuracy and consistency of hole positions. A15-3 glass drilling machine is suitable for glass drilling processing needs in fields such as household appliance glass, and automotive glass. With its precise and efficient characteristics, this glass drilling machine helps glass processing enterprises realize intelligent production in the glass drilling process.

Product Parameters

Product features and advantages

1.This glass drilling machine is suitable for processing various small glass pieces and has a wide range of applications.

2.This glass drilling machine can be used as a standalone machine; it can be combined with a manipulator to form a production line.

3.This glass drilling machine featur es a touchscreen operation interface.

4.The Y-axis platform movement is driven by a single drive, with a ball screw controlling the movement accuracy; it supports dual-station processing.

5.The platform is made of aluminum alloy, which has waterproof and corrosion-resistant properties.

6.The aluminum alloy tabletop can be manually adjusted according to the distribution of glass holes.



Product Parameters

Processing range

X:0-800mm; Y:0-500mm

Drilling diameter

Φ6-Φ50mm

Glass thickness

4-19mm

The speed of screw propulsion

0-3mm/s

Overall size

2000*1600*1700mm

The height of the table

900+/-20mm
