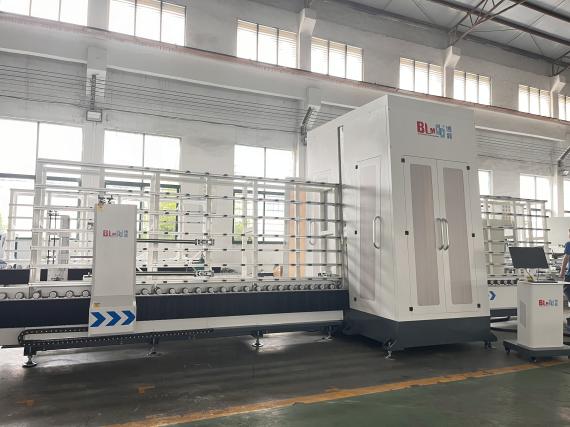

Small glass workshops deal with a steady push for ground space in everyday tasks. Old flat work lines tend to break task flows into pieces. They raise the chances of material move errors. They offer little space to boost output. The rise of the upright CNC machine for glass types, shown in the A71X series, alters Glass Fabrication Techniques at their base. It puts the height room ahead of the side area.
Small Glass Factory Space Optimization: Vertical Drilling & Milling All-in-One Machine Resolves Footprint and Process Stacking Pain Points
The field now shows that old glass tools cover too much ground. This leads to packed line setups. Those arrangements cut back on output growth a lot. Space shortages make many shops switch from drilling and milling glass steps by hand. Slow hauls come from that. Material moves lack speed. Glass sheets crack often as workers shift them over flat surfaces.
A main answer lies in bringing in an upright frame CNC machine for glass units like the A71X series. These devices tap the height to lift the ground output. They blend strong task steps. This change lets small shops take back the workroom. It builds a safer spot for staff. It also opens ways for extra follow-up tools such as heat ovens or clean lines.
What is the “Space Integration” Technology of the Vertical A71X Drilling & Milling Machine?
The A71X series points to a turn in build aims at height-led output. This “space integration” comes from a few main design rules.
- Vertical Structure Definition: The A71X applies upright load, unload, and work actions. It trims the full ground cover to below 50% of matching flat tools.
- Drilling and Milling Fusion: This method blends drilling and glass milling in one work spot. It drops the need for distinct units. It shortens the path glass travels, too.

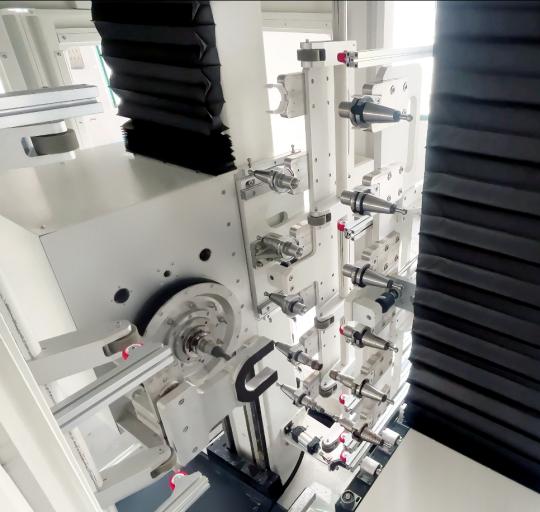

- Hardware Support: With a 6×2 or 8×2 tool holder layout, the device backs auto tool shifts in a slim body space. It calls for no added hand steps. It keeps the work area neat as well.
How to Achieve Efficient Glass Milling via the A71X?
Sharp work in milling glass remains a must for plant-level results. The A71X holds a firm base and range with these tech setups.
-
- Spindle Performance: The 12000rpm electric spindle offers the key to fast, steady hold for steady glass milling results. aids clean side ends, too.

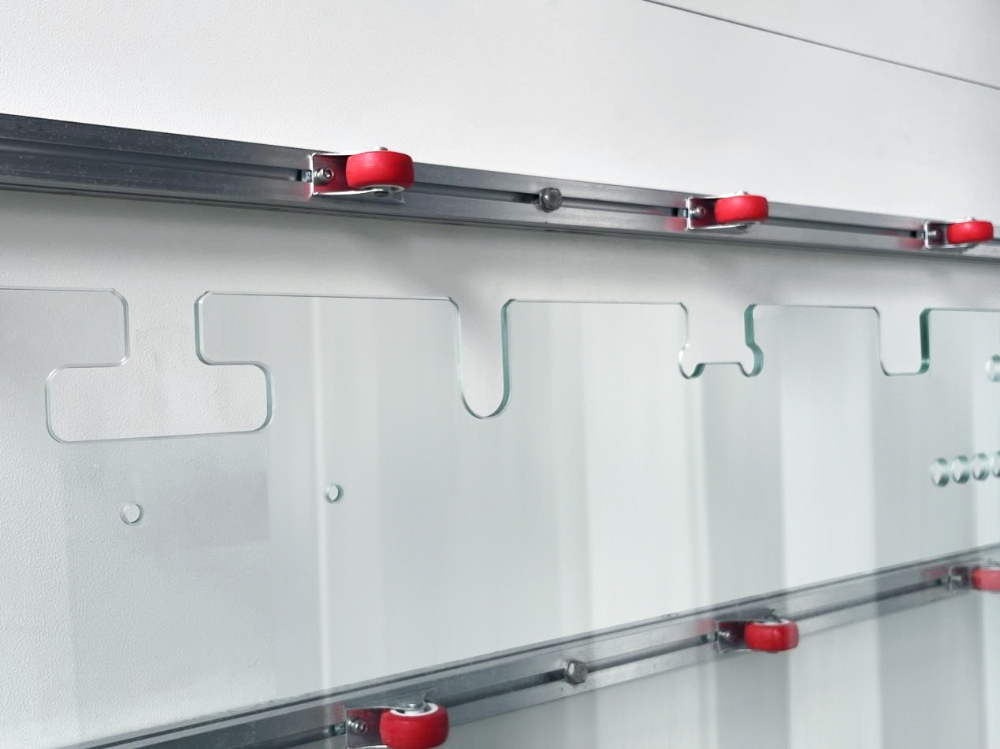

- Irregular Processing: The GOOGOLTECH motion control card lets the tool finish U-shaped grooves, square gaps, and tough sidemilling glass with exact marks. These are suit-made-to-order shower panels or building sheets.
- Multi-functional Combination: The A71X adds mill cutter choices as needed. It sets up a full single flow for drilling, milling glass, and buffing work. This drops extra hand moves. It lowers the chances of facial marks a great deal.
A71X Specifications: How to Choose the Right Model Based on Factory Scale?
Choosing the best device ties to the exact glass sizes your shop works with. BLM Automatic Machine gives varied specs to match varied plant needs. It makes sure each bit of ground in your place works well.
| Specification | Max Glass Size | Processing Range (X/Y) | Tool Holders | Thickness |
| A71X(2515) | 2500*1500mm | 0-2500mm / 0-1500mm | 6X2 | 4-19mm |
| A71X(3020) | 3000*2000mm | 0-3000mm / 0-2000mm | 8X2 | 4-19mm |
| A71X(4225) | 4200*2500mm | 0-4200mm / 0-2500mm | 8X2 | 4-19mm |
| A71X(6030) | 6000*3000mm | 0-6000mm / 0-3000mm | 8X2 | 4-19mm |
Note: All models support a hole diameter range of φ6–φ50mm and maintain high repeat positioning accuracy for zero-defect production.
Why Automated Control Can Significantly Reduce Operating Costs for Small Factories?
Small shops find auto systems as the main way to trim daily loads and lift money returns.
- Reduced Labor Dependency: CAD/CAM takes in DXF and PLT files straight. Staff draws and drills are in place. This skips errors from hand data repeats. It cuts the need for costly, skilled drawers.
- Maintenance Cost Control: The auto oil pump setup gives steady and measured lube to tracks and threads. Clear tags on all electric parts let basic workers spot break spots in normal checks. This cuts high-cost outside help calls.
- Process Efficiency: Task times shorten. Space rent drops due to less ground use. The joined flow brings steady money ups. It speeds client order turns, too.
Which Core Configurations Guarantee High-Intensity Industrial Production?
The A71X draws from top part lines to hold steady run and gain buyer faith around the world. It backs round-the-clock work power.
- Globalized Supply Chain: The device mixes parts from prime names like Schneider Electric, YASKAWA, SIEMENS, and Omron. Spare bits are easy to get globally.
- Software Compatibility: The setup reads drawings online. It joins ERP and guide systems. This lets barcode scans for auto hole parts and drills. Such steps fit large runs.
Vertical Drilling & Milling All-in-One Machine: The Inevitable Choice for Modern Glass Factories
To wrap up, an upright cnc glass drilling machine goes beyond fixing body space binds. It lifts the shop’s main strength via task blends and tech updates. For small to mid shops, the A71X series brings sharp work, auto runs, and firm hold to do well in hard fields. It keeps the workspace in order and smooth.
To better your output and get the most from ground area, call BLM Automatic Machine’s “2-7-24” quick answer team. Ask for a custom non-standard deep work line plan fit to your place’s exact needs.
Conclusion: The logical choice for modern glass factories
The upright CNC machine for glass stands beyond just big firm treatments. It serves as a key aid for small shops to stay and grow. It fixes ground space holds. It joins hard glass milling and drill acts into one auto phase. Units like the A71X let small firms stand with plant levels.
If you want to better your line setup, think of reaching BLM Automatic Machine. Get a made-to-fit deep process plan for your shop’s ground plan.
FAQ
Q: Does the A71X CNC machine for glass support automatic tool changes?
A: The A71X line has a 6×2 or 8×2 auto tool holder built in. It lets the device change drill tips and glass milling blades on its own amid the work steps. This raises speed without hand pauses. Workers save time on shifts between bits.
Q: What types of glass can be processed with the A71X milling glass technology?
A: The A71X works for strong tasks on shower area sheets and building wall glass. It deals with layers from 4mm up to 19mm. This wide range fits many plant uses. It handles daily runs without trouble.
Q: How does the BLM Automatic Machine improve space utilization?
A: BLM Automatic Machine takes an upright frame. It cuts ground cover by more than 50% against flat devices. Glass stands straight for processing. This setup works best in small shop areas with tight ground. It frees up room for other tasks.
Q: Is the A71X CNC machine for glass compatible with standard design software?
A: The work computer in the A71X pulls in CAD, DXF, and PLT files directly. This match lets old plans send over USB or inner nets with ease. Drills and milling glass act kick off right away. No big file changes needed.
Q: What are the maintenance requirements for the A71X glass milling machine?
A: Upkeep gets simple with an auto oil lube unit and a user-friendly control panel. The setup shows all input-output signs and alert notes. Staff can spot and fix breakpoints fast. It takes little skill training to keep things running smoothly.
